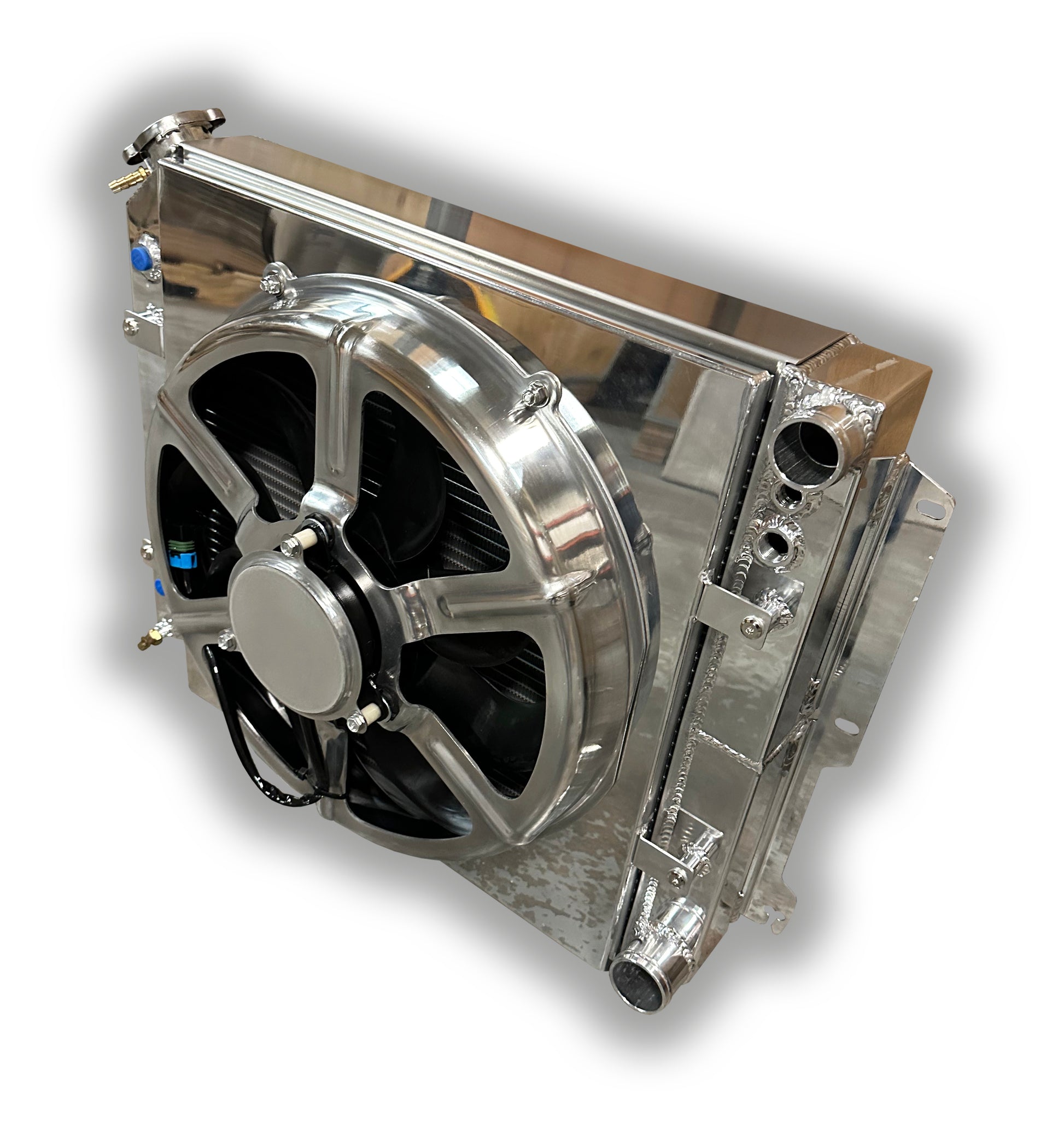

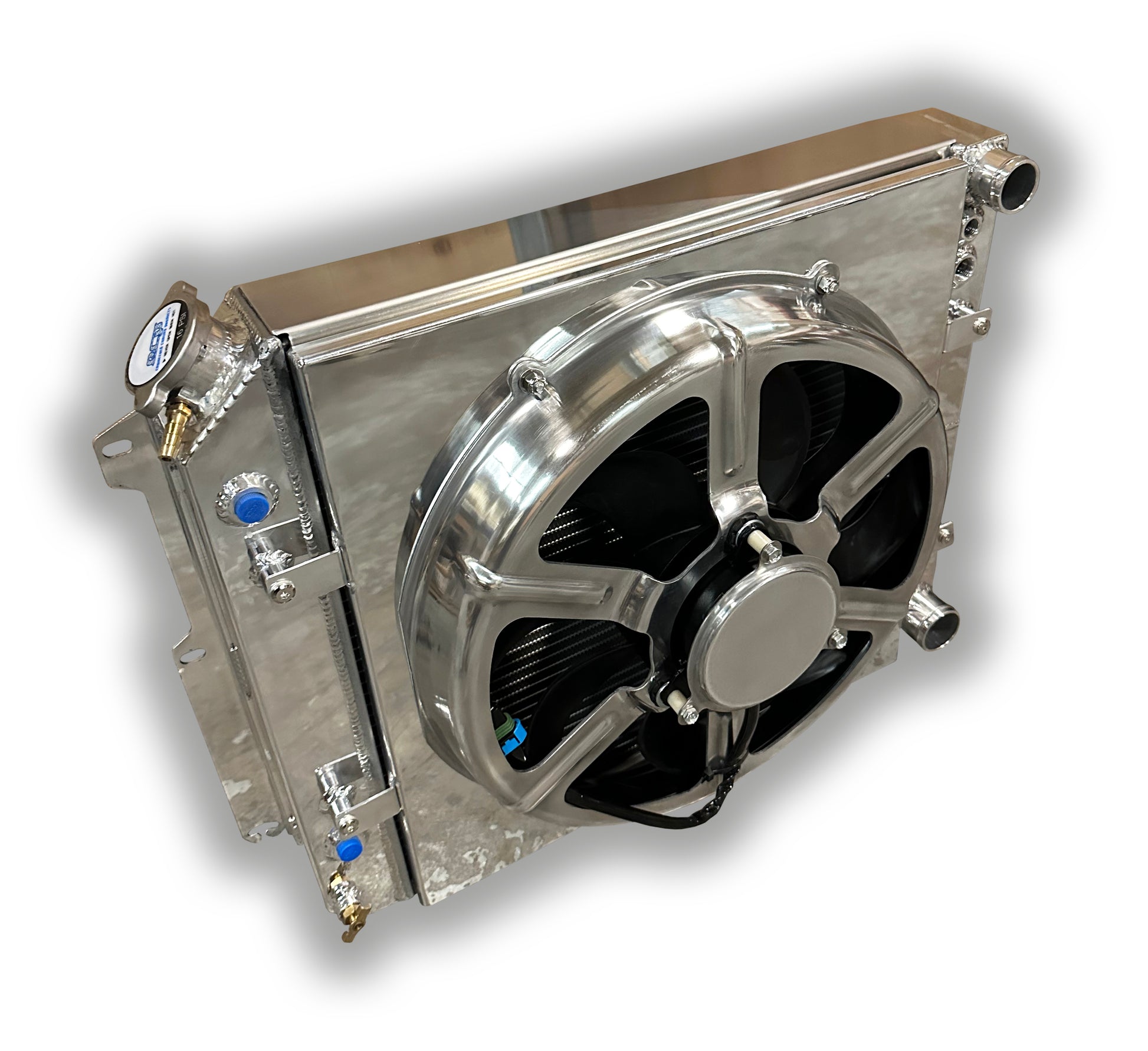

ECP Jeep TJ/YJ 1987 - 2004 Aluminum Radiator For LSX or LTX Conversion - 16" 3000 CFM HPX FAN

Ask, and you shall receive. By popular demand, the drop-in radiator for your Jeep TJ/YJ with a LSX or LTX motor is here. Did I mention it drop rights in?

- 3300 CFM 16" HPX Fan and Aluminum Shroud. No gimmick wimpy fans that won't cool your hot rod. Total depth of the radiator plus fan assembly is 7". Please check your clearance to the water pump before purchasing.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Hand formed tanks to give your ride modern styling and with modern day cooling technology.

- 27" wide x 19" tall including the brackets and filler cap.

- Double-pass for a 20% cooling boost with the proper LSX and LTX steam vent connection.

- Core is 18" wide x 18" high.

- Will reliably cool up to 500 horsepower.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/4, lower is 1-1/2. Both hose connections are on the passenger side,

- Heavy duty transmission cooler.

Need it modified? Give us a call at (773)599-3067
