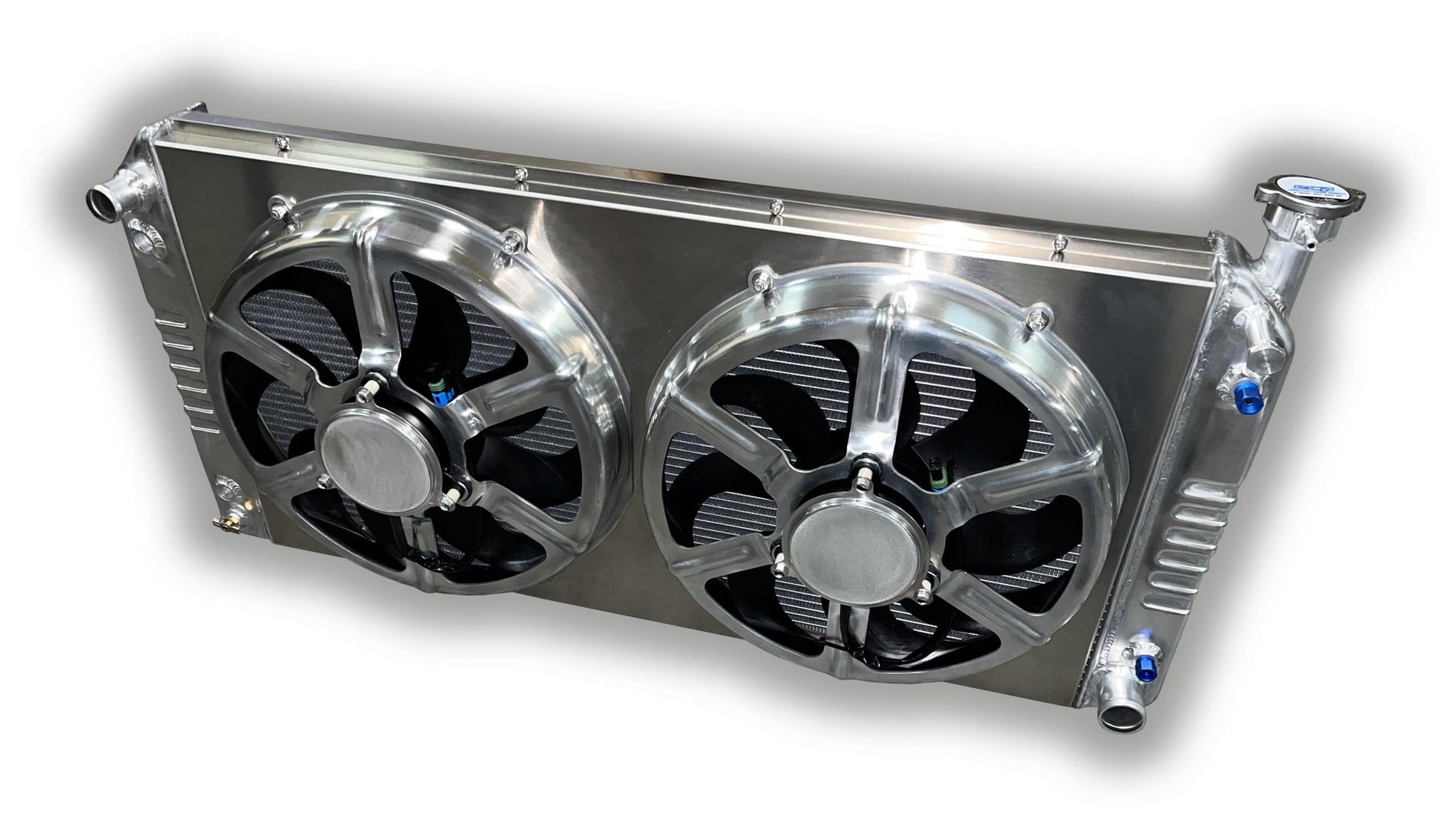

1995 - 1998 Chevy Truck Aluminum Radiator Upgrade - 40" WIDTH - Dual 16" HPX Fans

1995 – 1998 Chevy Truck Aluminum Radiator Upgrade – 40″ WIDTH – Dual 16″ HPX Fans

This is our all new aluminum radiator for the 1988 - 1998 Chevy trucks that use the 34" wide core radiator (40" overall width) with an overall height of 19". This WILL NOT fit trucks that use the radiator with a 34" overall width radiator commonly used in the 1995 - 1998 trucks.

Recap: This fits trucks that use the 34" wide core with a 40" overall width. Not sure if this is the right rad for your truck? Just give us a call (773)599-3067

This WILL NOT fit trucks that use the 28-1/4" wide core and have a 34" overall width

– Dual MASSIVE 16″ 3300 CFM HPX Fans – Blasting out 6600  a combined CFM CFM to put your truck in a state of cryogenic DEEP FREEZE.

- Die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Heavy duty transmission cooler and engine oil cooler

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Core dimensions are 34" wide x 17-1/4" tall. Overall dimensions 40" wide x 19" high.
