1988 - 1998 Chevy Truck Aluminum Radiator Upgrade

1988 – 1998 Chevy Truck Aluminum Radiator Upgrade

This is our all new aluminum radiator for the 1988 - 1998 Chevy trucks that use the 28-1/4" wide core radiator (34" overall width) with an overall height of 19". This WILL NOT fit trucks that use the radiator with a 40" overall width radiator commonly used in the 1995 - 1998 trucks.

- Die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Heavy duty transmission cooler and engine oil cooler

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Core dimensions are 28-1/4" wide x 17-1/4" tall. Overall dimensions 34" wide x 19" high.

- Billet heater return port with plug.

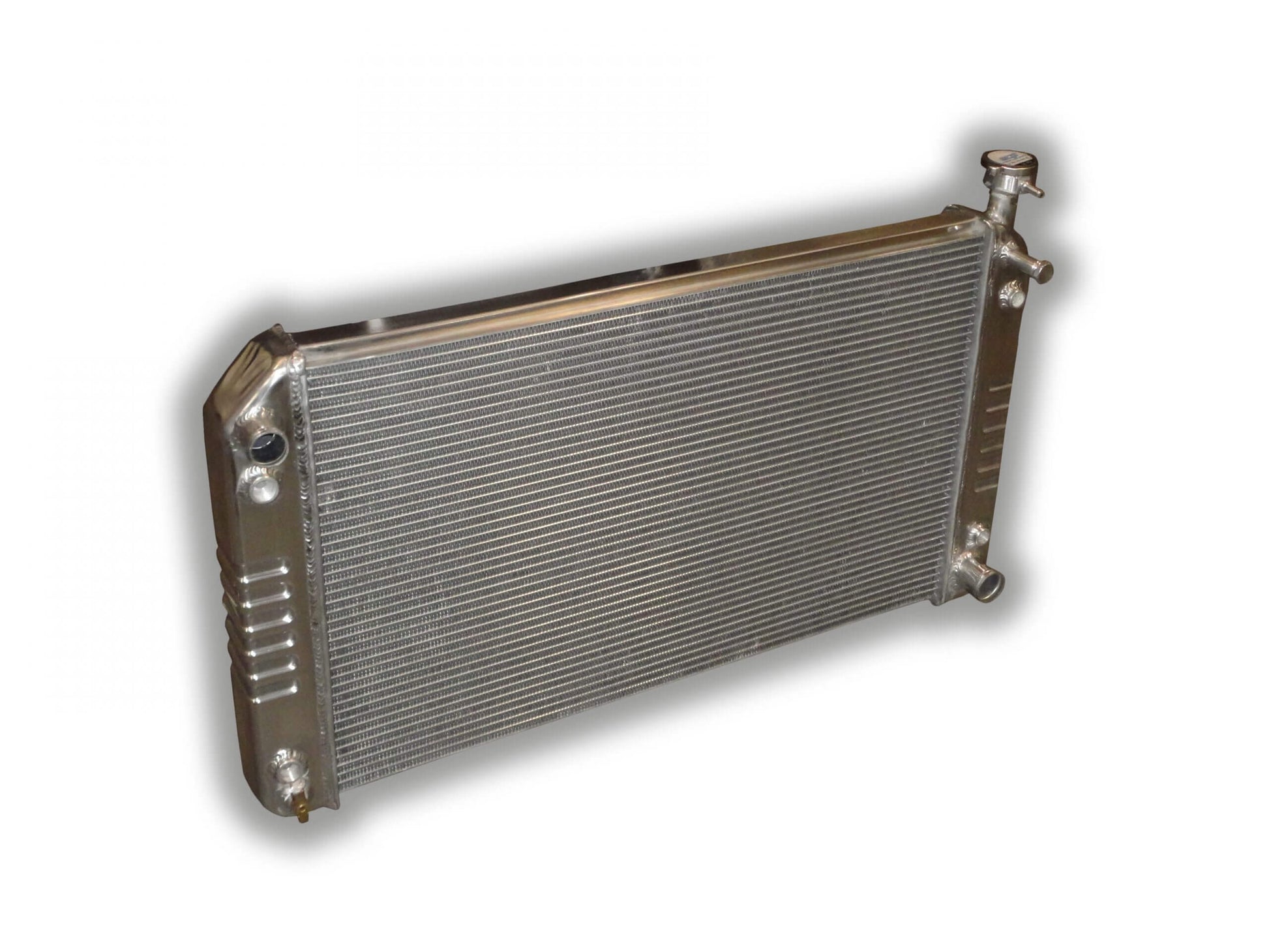

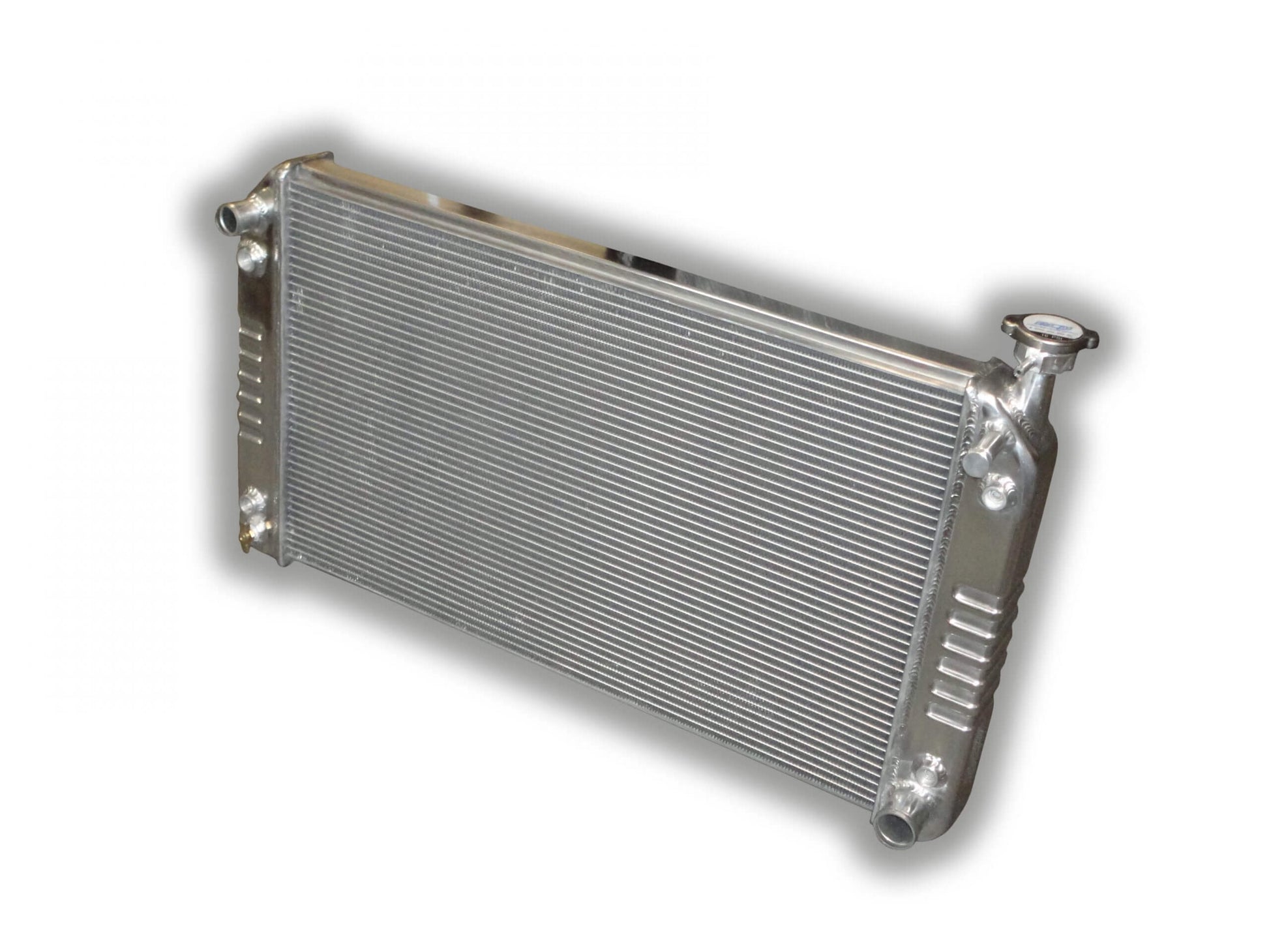

The radiators is exactly as shown. The pictures shown are as-is out of the box. Please note it is not a full show quality trailer queen mirror finish polish but can be taken to that level with a minimum amount of finishing.
