1973 - 1987 Chevy Truck Aluminum Radiator - TALL 20-3/8" - Dual 11" Fans With Aluminum Shroud - 3000 Total CFM

1973 - 1987 Chevy Truck Aluminum Radiator - TALL 20-3/8" - Dual 11" Fans With Aluminum Shroud - 3000 Total CFM

SKU: RAD-6716-HDDF
Regular price $647.00 USD
Regular price $647.00 USD Sale price $647.00 USD
Sale Sold out
Shipping calculated at checkout.

Description:

1973 – 1987 Chevy Truck Aluminum Radiator – TALL 20-3/8″ – Dual 11″ Fans With Aluminum Shroud – 3000 Total CFM

This is our all new aluminum radiator for the 1973 - 1987 Chevy trucks that use the 28-1/4" wide core radiator with an overall height of 20-3/8". Like all of our radiators, it's made with 2-rows of big 1" tubes to keep your Chevy box truck cool.

Note: This WILL NOT fit trucks that use the radiator with a 19" overall height commonly used in the 1/2 ton and some 3/4 ton trucks.  For those trucks, our model RAD-6161S will drop right into your truck.

This radiator features:

– Lifetime Warranty against defects (radiator AND fans!)

– Aluminum shroud with dual 11″ fans giving you a total of 3000 CFM.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Heavy duty transmission cooler.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Core dimensions are 28-1/4" wide x 19-1/4" tall. Overall dimensions 34" wide x 20-3/8" high.

- Billet heater return port with plug.

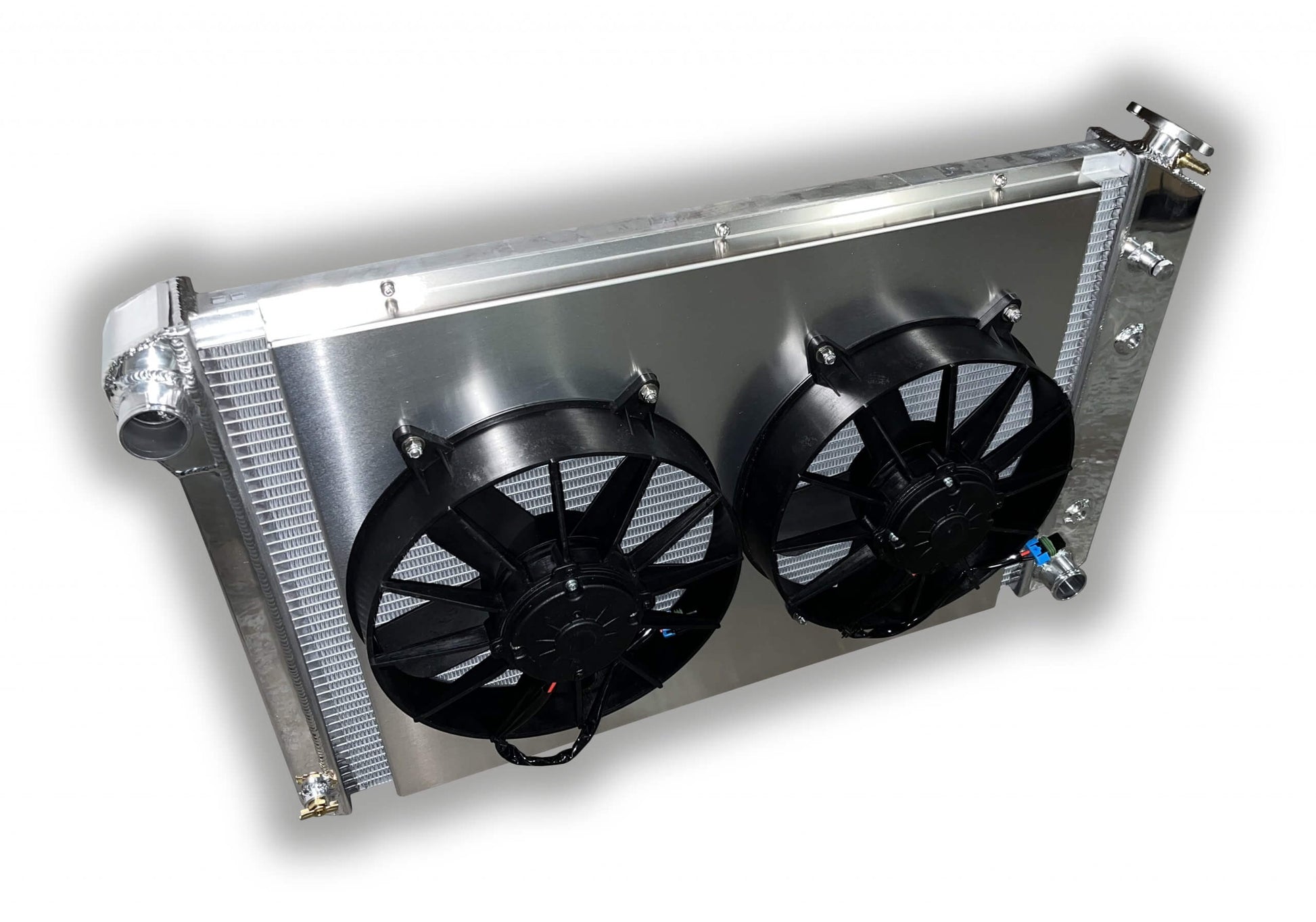

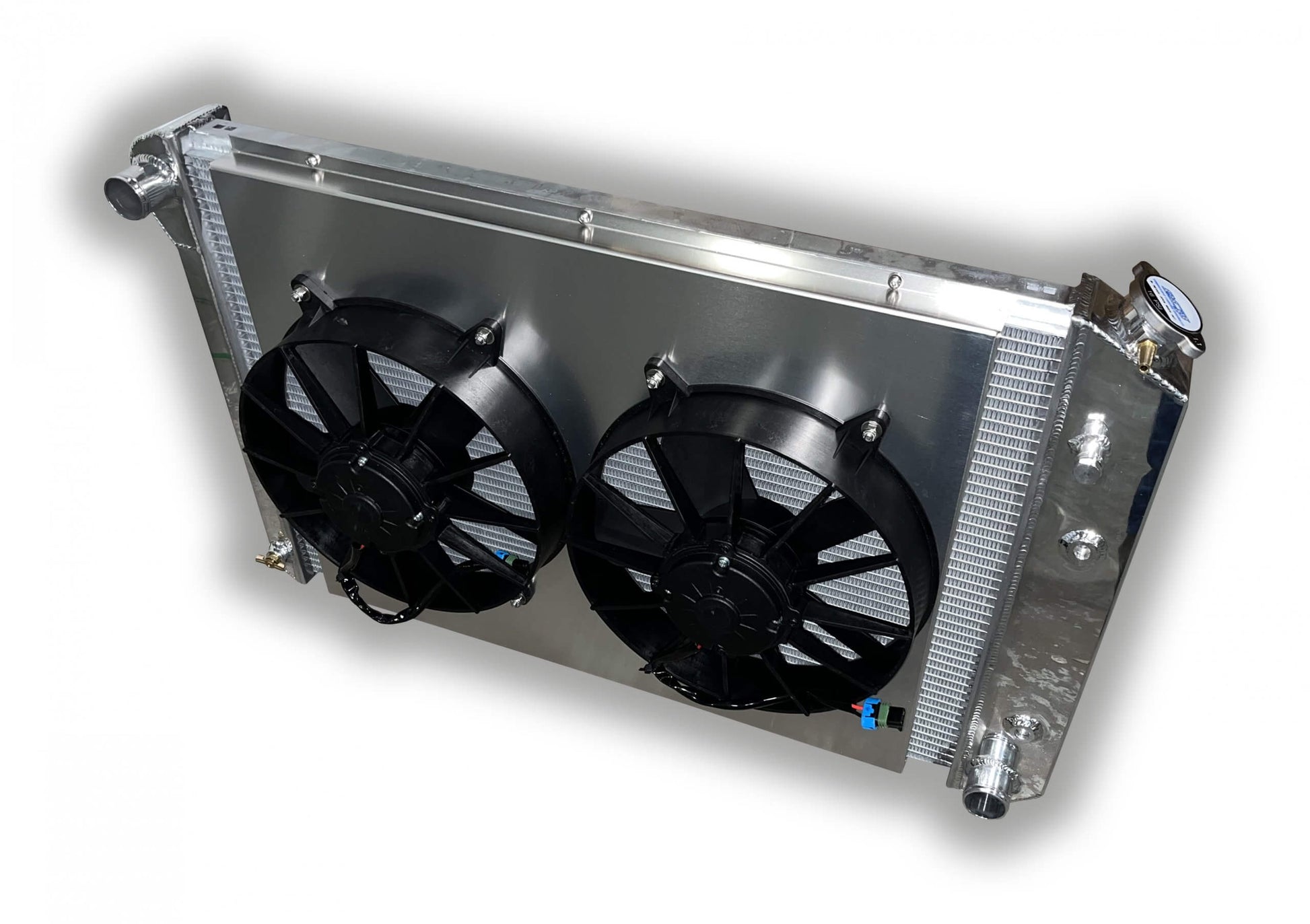

The radiators is exactly as shown. The pictures shown are as-is out of the box. Please note it is not a full show quality trailer queen mirror finish polish but can be taken to that level with a minimum amount of finishing.
