1973 - 1987 Chevy Truck Aluminum Radiator - TALL 20-3/8"

1973 - 1987 Chevy Truck Aluminum Radiator - TALL 20-3/8"

SKU: RAD-6716
Regular price $327.00 USD
Regular price $327.00 USD Sale price $327.00 USD
Sale Sold out
Shipping calculated at checkout.

Description:

1973 – 1987 Chevy Truck Aluminum Radiator

This is our all new aluminum radiator for the 1973 - 1987 Chevy trucks that use the 28-1/4" wide core radiator with an overall height of 20-3/8". Like all of our radiators, it's made with 2-rows of big 1" tubes to keep your Chevy box truck cool.

Note: This WILL NOT fit trucks that use the radiator with a 19" overall height commonly used in the 1/2 ton and some 3/4 ton trucks.  For those trucks, our model RAD-6161S will drop right into your truck.

This radiator features:

- Die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Heavy duty transmission cooler.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Core dimensions are 28-1/4" wide x 19-1/4" tall. Overall dimensions 34" wide x 20-3/8" high.

- Billet heater return port with plug.

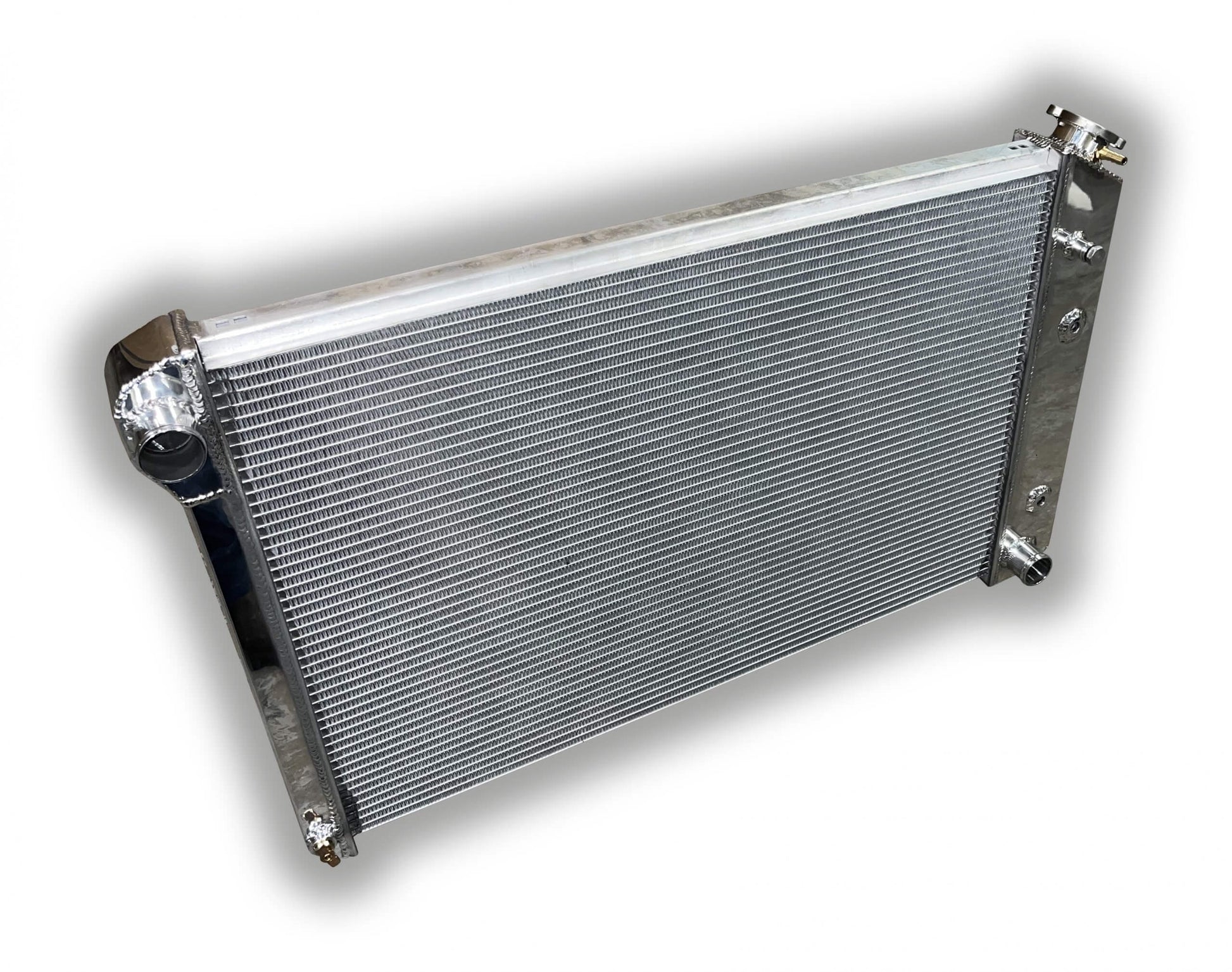

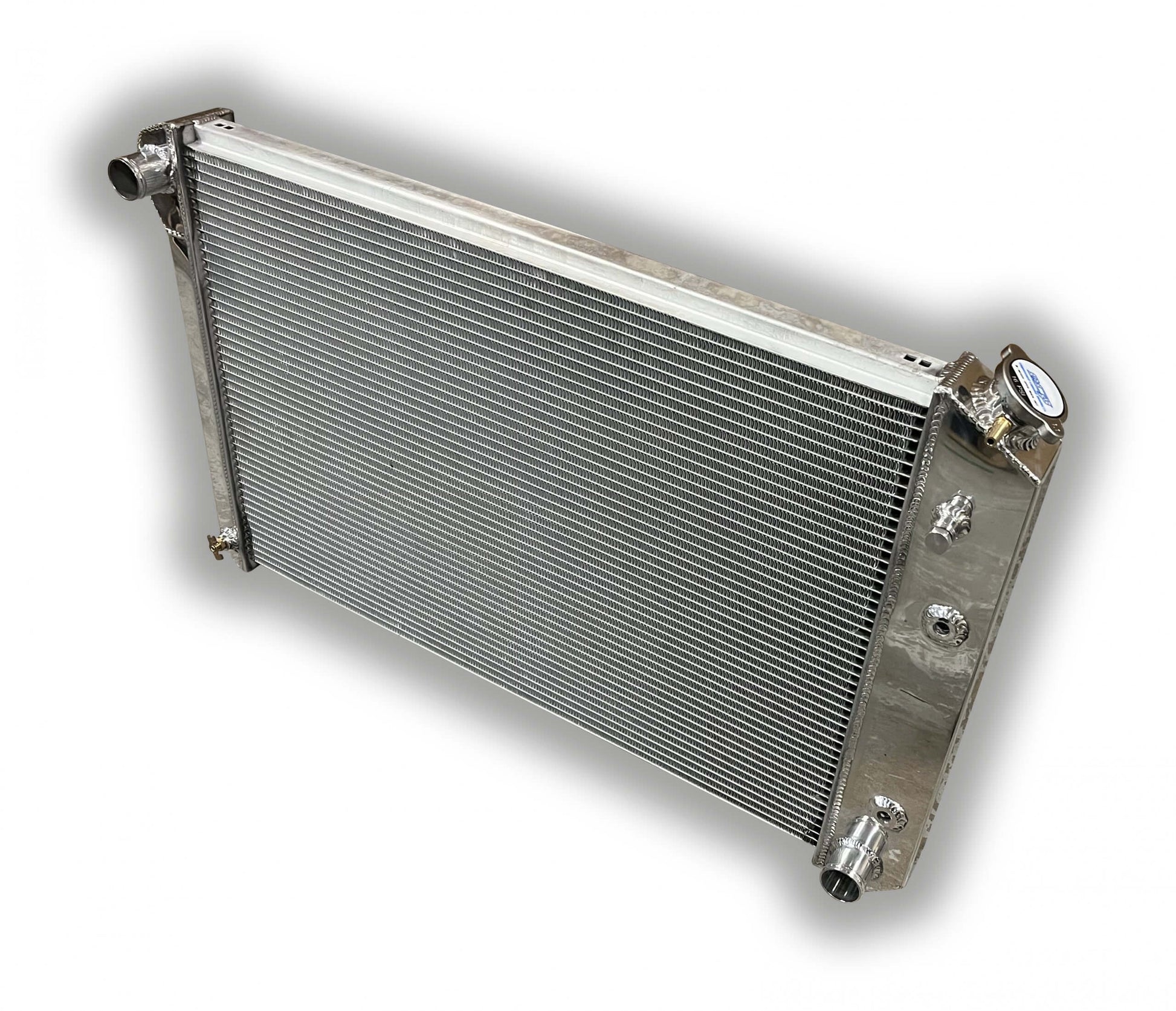

The radiators is exactly as shown. The pictures shown are as-is out of the box. Please note it is not a full show quality trailer queen mirror finish polish but can be taken to that level with a minimum amount of finishing.
