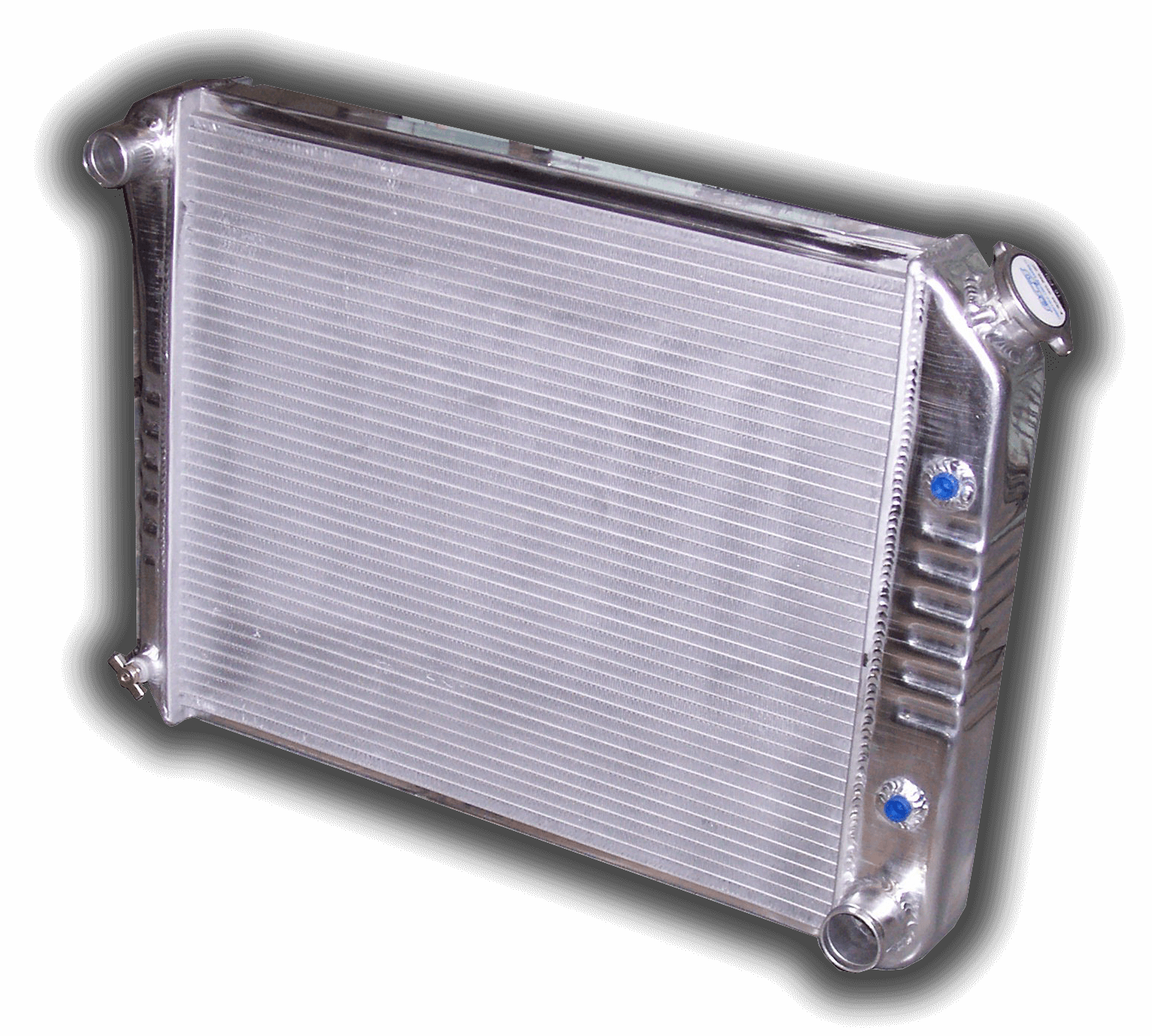

1968 - 1977 Chevelle Aluminum Radiator (SMALL)

This it our all HD aluminum radiator for the 1968 – 1977 Chevy Chevelle that use the 20-3/4″ wide core radiator. Like all of our radiators, it’s made with proven 2-rows of 1.0″ tubes that is proven to out cool 3-row and 4-row aluminum radiators by a substantial amount. If you’re looking for the large Chevelle radiator, click here.

– Polished die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

– All aluminum construction with a heavy duty 2-row core with 1.0″ tubes

– Billet CNC machined filler neck. A new cap is included.

– Fully TIG welded construction with no epoxy.

– Upper hose connection is 1-9/16, lower is 1-5/8.

– Core dimensions are 20-3/4″ wide x 17-1/4″ tall. Overall dimensions 26″ wide x 19″ high.
