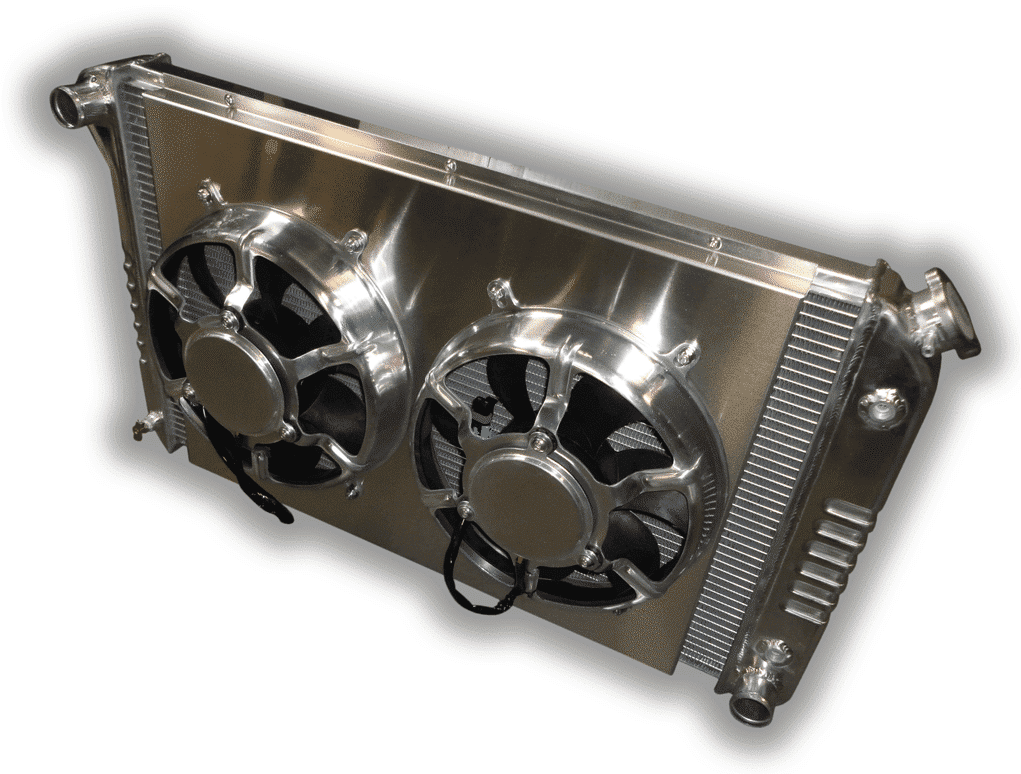

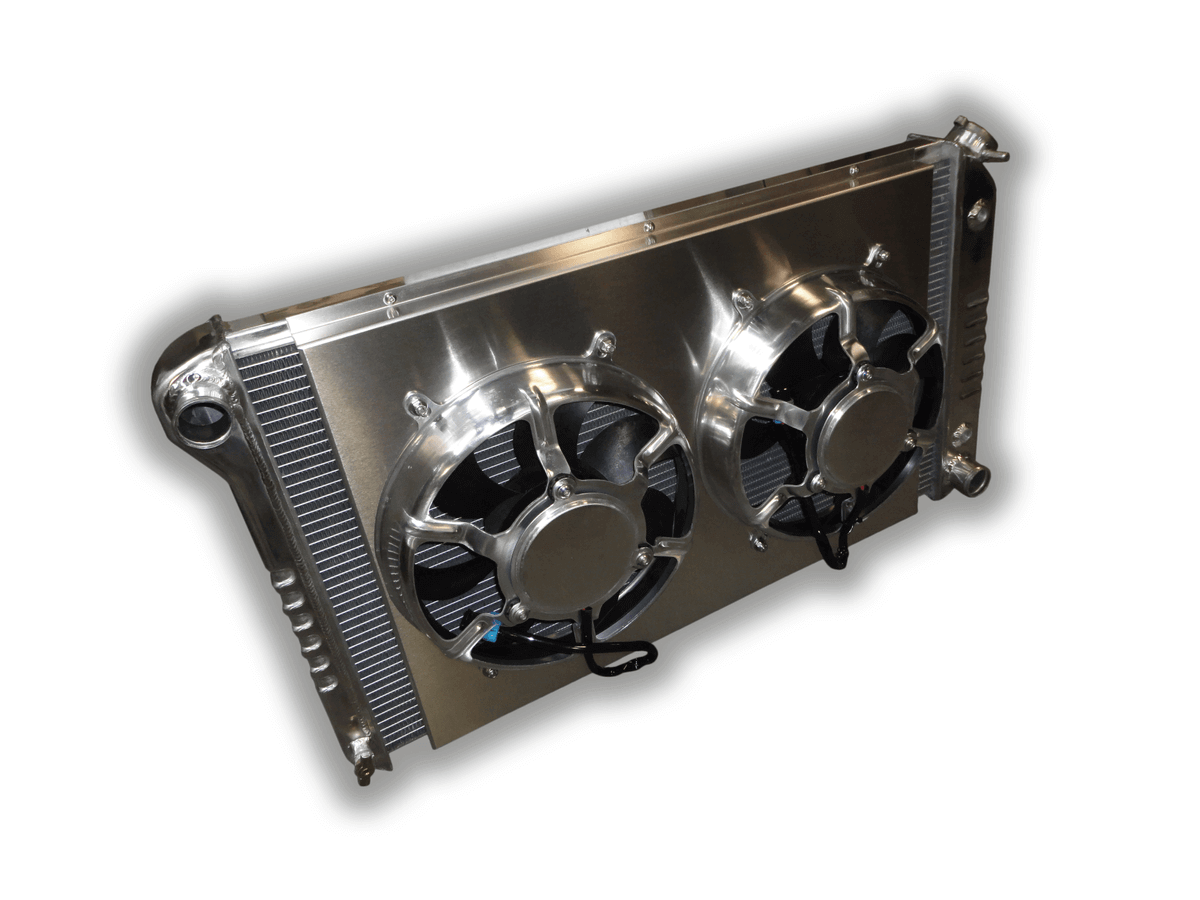

1968 - 1977 Chevelle Aluminum Radiator Dual HPX Fans

1968 - 1977 Chevelle Aluminum Radiator Dual HPX Fans

SKU: RAD-6161SX2-HPX
Regular price $827.00 USD
Regular price Sale price $827.00 USD
Sale Sold out
Shipping calculated at checkout.

Description:

This it our heavy duty all aluminum radiator for the 1968 – 1977 Chevy Chevelle that use the 28-1/4″ wide core radiator. Like all of our radiators, it’s made with proven 2-rows of 1.0″ tubes that is proven to out cool 3-row and 4-row aluminum radiators by a substantial amount.

This unit features upgraded ALL ALUMINUM housing HPX fans with 3200 CFM total. These look AMAZING!!!

– Limited Lifetime Warranty against defects (radiator AND fans!)

– Polished die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

– All aluminum construction with a heavy duty 2-row core with 1.0″ tubes

– Billet CNC machined filler neck. A new cap is included.

– Fully TIG welded construction with no epoxy.

– Upper hose connection is 1-9/16″, lower is 1-5/8″.

– Core dimensions are 28-1/4″ wide x 17-1/4″ tall. Overall dimensions 33″ wide x 19″ high.

– Will reliably cool up to 700 horsepower.
