1967 - 1972 Chevy Truck Aluminum Radiator Dual HPX Fans With Aluminum Shroud

1967 - 1972 Chevy Truck Aluminum Radiator Dual HPX Fans With Aluminum Shroud

Regular price $827.00 USD
Regular price $747.00 USD Sale price $827.00 USD
Sale Sold out
Shipping calculated at checkout.

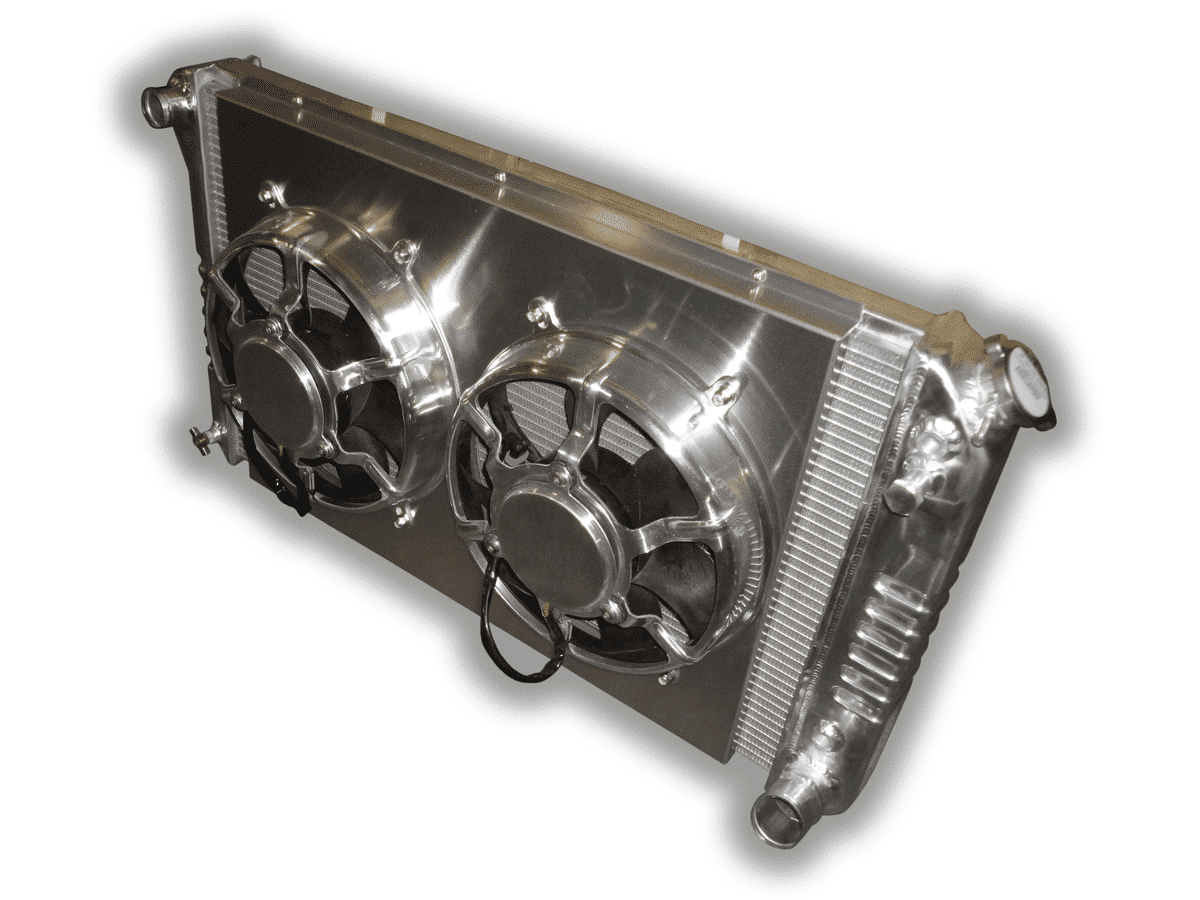

1967 – 1972 Chevy Truck Aluminum Radiator Dual Fans With Aluminum Shroud

This is our HD aluminum radiator for the 1967 - 1972 Chevy trucks that use the 28-1/4" wide core radiator with 4-row mounts. It features:

This unit features upgraded ALL ALUMINUM housing HPX fans with 3200 CFM total. These look AMAZING!!!

- Lifetime Warranty

- Die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Heavy duty transmission cooler.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Core dimensions are 28-1/4" wide x 17-1/4" tall. Overall dimensions 34" wide x 19" high.

- Billet heater return port with plug.

- Also available with dual electric fans and aluminum shroud

The radiators is exactly as shown. The pictures shown are as-is out of the box. Please note it is not a full show quality trailer queen mirror finish polish but can be taken to that level with a minimum amount of finishing.

To complete your install, use our FC-02 fan controller to wire up your new radiator setup.
