1967 - 1972 Chevy Truck Aluminum Radiator Dual Fans With Aluminum Shroud

This is our HD aluminum radiator for the 1967 - 1972 Chevy trucks that use the 28-1/4" wide core radiator with 4-row mounts. It features:

- Lifetime Warranty

- Dual 11" HP fans - delivery 3000 CFM total and aluminum shroud. Completely assembled and ready to drop into your truck.

- Die formed tanks to give your ride the vintage style with modern high efficiency cooling technology.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Heavy duty transmission cooler.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Core dimensions are 28-1/4" wide x 17-1/4" tall. Overall dimensions 34" wide x 19" high.

- Billet heater return port with plug.

- Also available with dual electric fans and aluminum shroud

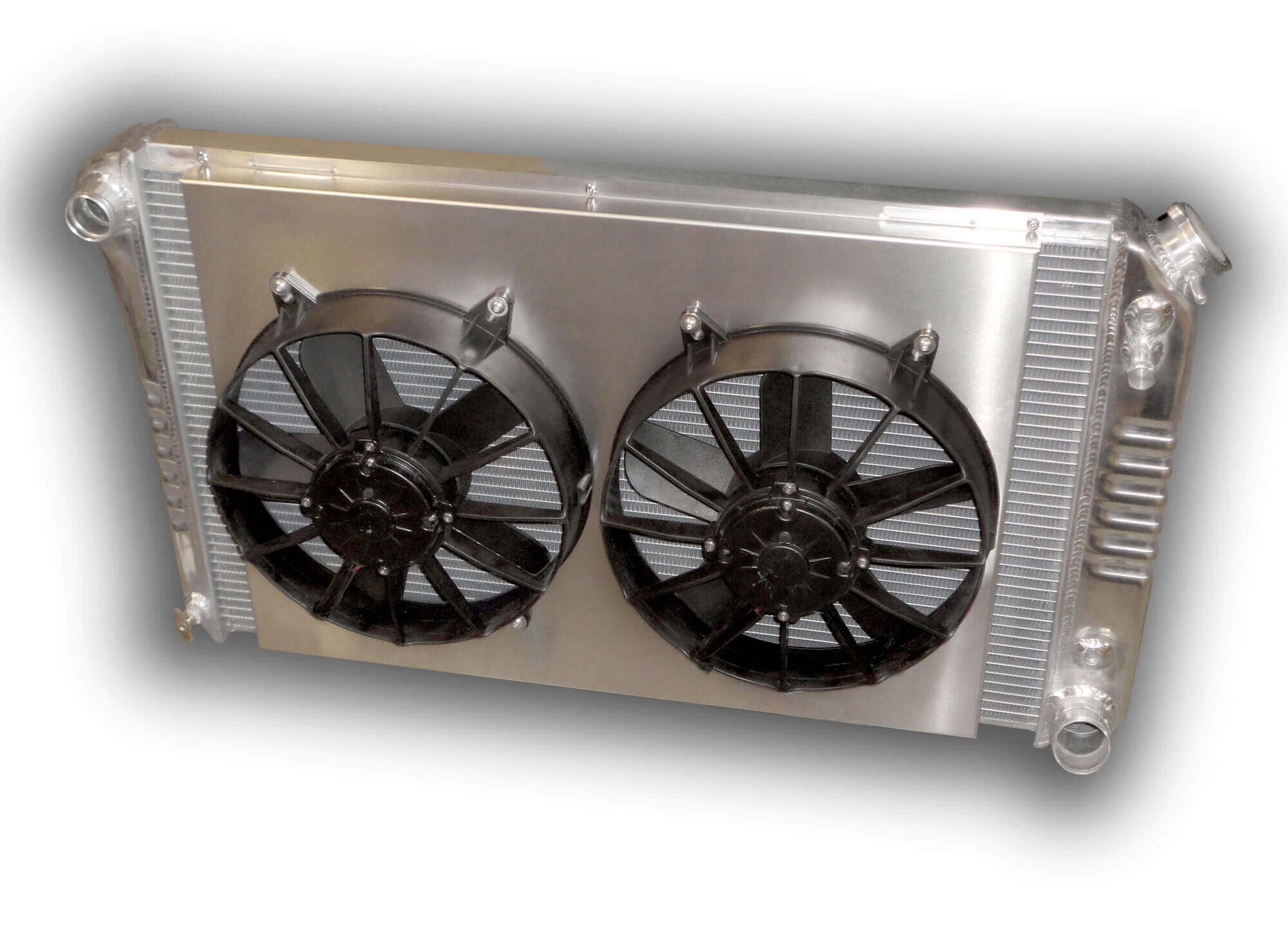

The radiators is exactly as shown. The pictures shown are as-is out of the box. Please note it is not a full show quality trailer queen mirror finish polish but can be taken to that level with a minimum amount of finishing.

To complete your install, use our FC-02 fan controller to wire up your new radiator setup.
