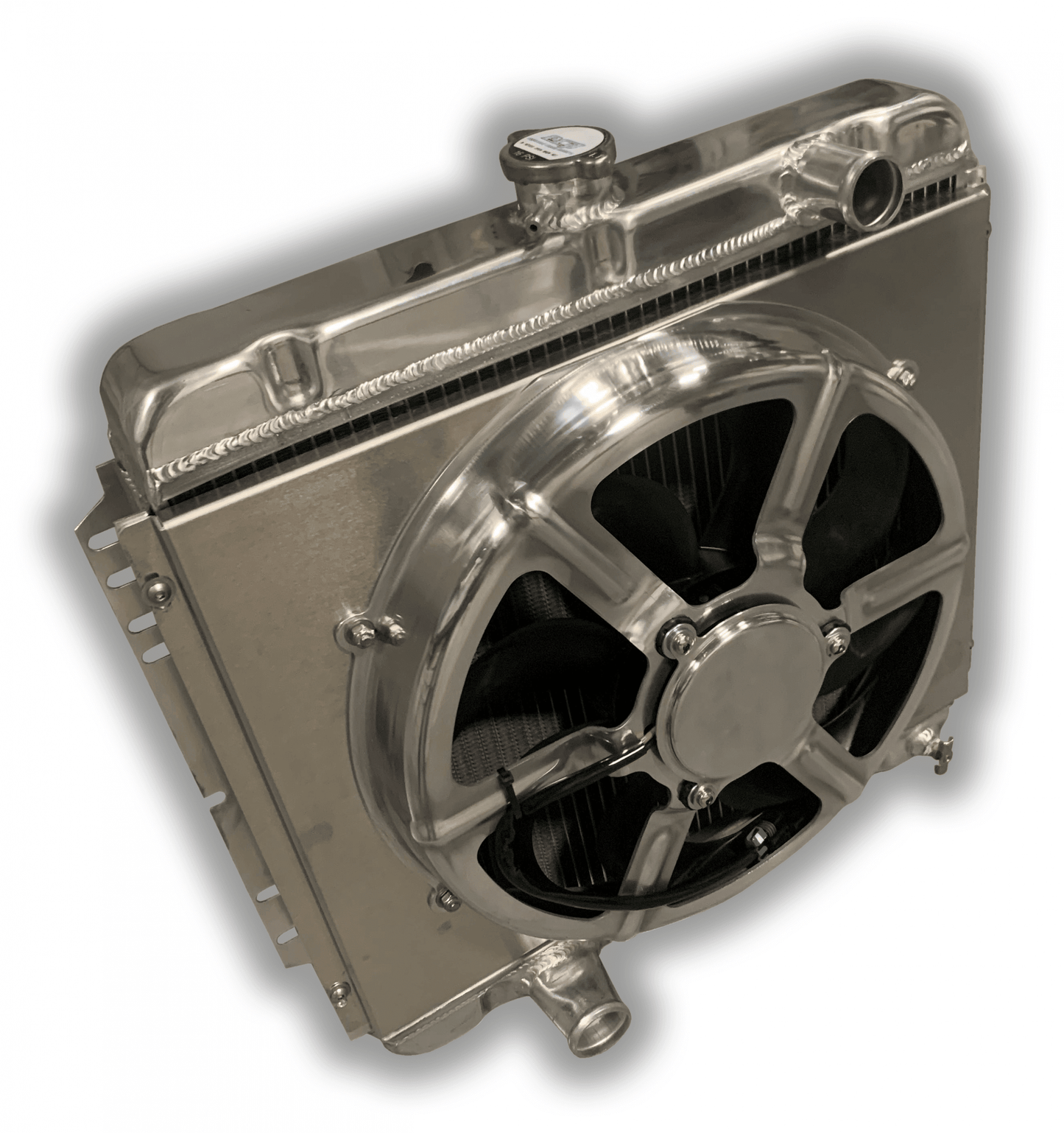

1967 - 1970 Mustang Aluminum Radiator 22" DS Outlet - 16" HPX 3300 CFM FAN And Aluminum Shroud

1967 – 1970 Mustang Aluminum Radiator 22″ DS Outlet – 3300 CFM FAN And Aluminum Shroud

This is our HD aluminum radiator for the 1967 - 1970 Ford Mustang that use the 22" radiator. There are several different radiators used in the 67 - 70 Mustangs. Please see the diagram below to ensure this is the correct radiator for your car.

This radiator bolts directly to the core support and does not use the upper and lower saddle mounts that the larger 25" radiators use. It has the lower hose connection on the drivers side. This same radiator is available with the lower hose connection on the passenger side, please see our other part number 340 for that model.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Aluminum shroud and 16" HPX 3300 CFM fan with aluminum housing.

- Die formed tanks to give your ride classic styling with modern cooling technology.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2, lower is 1-3/4.

- Heavy duty plate transmission cooler, not a cheap concentric transmission cooler that will do more harm than good

- Will reliably cool up to 600 hosepower (not an imaginary 1000 HP that 3-rows claim to cool).

The radiators are not polished and have a natural finish. For photos, the radiators have been removed from the packaging and cleaned with an aluminum cleaner and scotch brite.

*** Total depth of the radiator from the flange to the top of the fan motor is 7". Please check your clearance before ordering and calls us at (773)599-3067, we will help you verify if it will fit. ***
