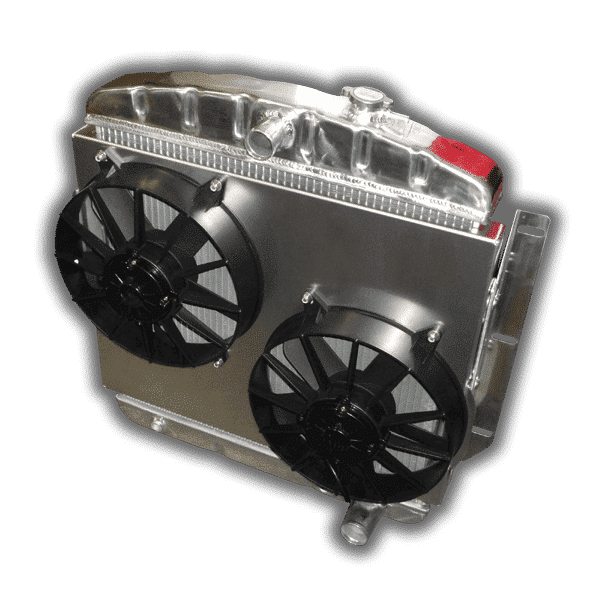

1955 - 1959 Chevy Truck Aluminum Radiator - Dual HP Fans - Aluminum Shroud

This is our all new aluminum radiator for the 1955 - 1959 Chevy pickup truck that use the 25-1/4" bolt center (please see the diagram below). It has die formed tanks, looks great and cool greats while giving your ride style with modern cooling technology.

- Die formed tanks to give your ride a classic look while providing modern cooling technology.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Adjustable brackets are slotted and require no drilling, unlike the cheap radiators that require you to drill your own mounting holes.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Please refer to the diagram below for dimensions.

- Heavy duty plate transmission cooler, not a cheap round cenctric cooler. Your lead sled needs a heavy duty transmission cooler, due to the weight of these trucks.

To complete your install, use our RH-02 fan harness to wire up your new radiator setup.
