1948 - 1954 Chevy Truck Aluminum Radiator

1948 - 1954 Chevy Truck Aluminum Radiator

SKU: RAD-7104S
Regular price $347.00 USD
Regular price $297.00 USD Sale price $347.00 USD
Sale Sold out
Shipping calculated at checkout.

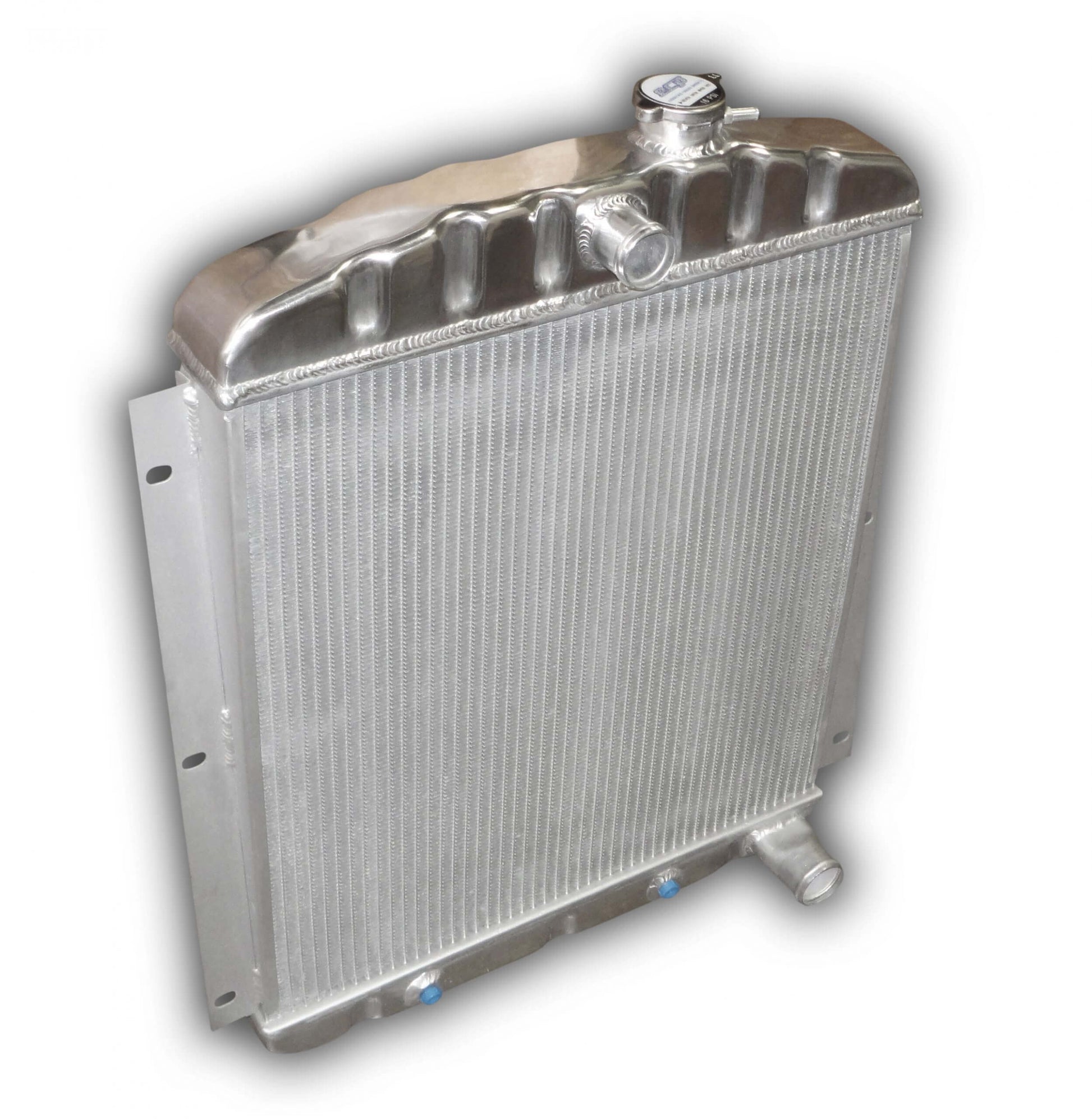

1948 – 1954 Chevy Truck Aluminum Radiator

This is our all new aluminum radiator for the 1948 - 1954 Chevy pickup trucks.  It has die formed tanks, looks great and cool greats while giving your ride style with modern cooling technology.

- Die formed tanks to give your ride a classic look while providing modern cooling technology.

- 23" wide x 26-3/4" high including cap and side brackets. Core size is 20-1/2" high x 19-1/2" wide.

- All aluminum construction with a heavy duty 2-row core with 1.0" tubes.

- Adjustable brackets are slotted and require no drilling, unlike the cheap radiators that require you to drill your own mounting holes.

- Billet CNC machined filler neck. A new cap is included.

- Fully TIG welded construction with no epoxy.

- Upper hose connection is 1-1/2", lower is 1-3/4".

- Please refer to the diagram below for dimensions.

- Heavy duty plate transmission cooler, not a cheap round cenctric cooler. Your lead sled needs a heavy duty transmission cooler, due to the weight of these trucks.
